PSC Cylinder Assist™ Steering Kit for 2012-18 Jeep Wrangler JK 3.6L w/ Front Axle 6.75" Lock-to-Lock with 2.0" Tie Rod Clamp
***PLEASE READ PRODUCT DESCRIPTION BELOW FOR ADDITIONAL DETAILS AND RECOMMENDED INSTALLATION TOOLS***
PSC has developed the BIG BORE XD Steering Kits to be the ultimate steering upgrade package for Jeep JK/JKUs equipped with locking differentials, aftermarket axles, and up to 44" tire sizes.

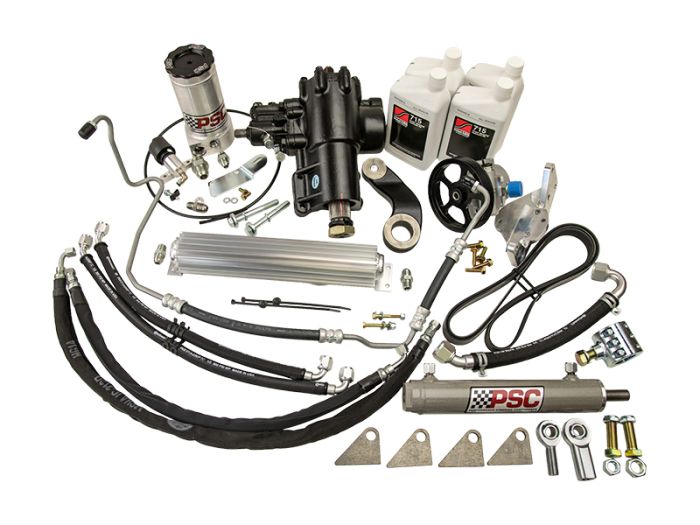

All kits include our top of the line components including the BIG BORE XD Steering Gearbox, High-Performance Power Steering Pump Kit with Remote Reservoir, High Pressure Hose Conversion, Steering Assist Cylinder with Hardware, 1-3/8" Tie Rod Clamp, Fluid Cooler, and SWEPCO 715 Power Steering Fluid.
For the daily driver or a project that is not quite ready for a steering assist cylinder installation, we offer the Adventure Series Kit, with Cylinder Assist™ capability.
Every PSC BIG BORE XD Cylinder Assist Steering Kit is complete with everything needed for a successful installation.
Don't see what you need or need help making a decision on which product is right for your project?
Contact Us
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
ACTUAL KIT CONTENTS MAY VARY DUE TO PRODUCT DESIGN CHANGES AND/OR ENHANCEMENTS.
APPLICATION:
2012-2018 Jeep JK 2 Door or 4 Door 3.6L with 2.0 OD Tie Rod
FEATURES:
Eliminates excessive on-center steering wheel "play"
Eliminates pump overheating
Increased Torque Output turns 37" and larger tire sizes
Improved turning capability when locking differentials are engaged
INCLUDES:
BOX 1: SG688R Big Bore XD Steering Gear
BOX 2: PK36JP1 Complete Pump Kit: Includes Fluid Reservoir, Fluid Cooler, Fluid Anti-Splash Valve, Serpentine Drive Belt, Brackets, Hoses, & Fittings, and 4 QTS SWEPCO 715 Power Steering Fluid
*PUMP KIT NOTE* For vehicles equipped with a supercharger, please call our Sales Team 9AM-5PM CST Monday-Friday at 817-270-0102 to place a custom order.
BOX 3: CAK688R-6.75W Cylinder Assist™ Kit: Includes Assist Cylinder™, Rod Ends and Hardware, and Installation Hose Kit
BOX 4: TRCL2.0: 2.00" ID Tie Rod Clamp
WARNING!
Use HWK-688-PP hardware kit when installing a Synergy MFG Track Bar and Sector Shaft Brace with this product.
Using the Factory or the standard PSC supplied bolts with the Synergy MFG Track Bar and Sector Shaft Brace could result in steering gearbox case failure.
NOTES:
The larger size of the BIG BORE XD Steering Gear may prohibit the use of some aftermarket track bars. Consult with your Installer.
RECOMMENDED INSTALLATION TOOLS:
46MM Pitman Arm Nut Socket
Pitman Arm Puller
Tie Rod End Puller
Axle Caster Gauge
Pneumatic Anaerobic Thread Sealant
Custom Stock Status | In Stock |
---|
