PSC Cylinder Assist™ Steering Kit for 2012-18 Jeep Wrangler JK 3.6L with OE Axle

Expected time to ship, 7-10 business days
SKU
SK688R36JP1-OE
$3,423.99
Quick Overview

PSC has developed the BIG BORE XD Steering Kits to be the ultimate steering upgrade package for Jeep JK/JKUs equipped with locking differentials, aftermarket axles, and up to 44" tire sizes.



All kits include our top of the line components including the BIG BORE XD Steering Gear, High-Performance Power Steering Pump Kit with Remote Reservoir, High Pressure Hose Conversion, Steering Assist Cylinder with Hardware, 1-3/8" Tie Rod Clamp, Fluid Cooler, and SWEPCO 715 Power Steering Fluid.



For the daily driver or a project that is not quite ready for a steering assist cylinder installation, we offer the Adventure Series Kit with Cylinder Assist™ capability.



Every PSC BIG BORE XD Cylinder Assist Steering Kit is complete with everything needed for a successful installation.



Don't see what you need or need help making a decision on which product is right for your project? Contact Us



RECOMMENDED INSTALLATION TOOLS:

46mm Pitman Arm Nut Socket

Pitman Arm Puller

Axle Caster Gauge

Tie Rod End Puller

Pneumatic Anaerobic Thread Sealant


WARNING!

Add HWK-688-PP And SYN-8869-10 when installing any Synergy MFG Front Track Bar Brace (or similar) with this product.

Using the Factory or the PSC supplied bolts with a Synergy MFG Track Bar Brace could result in steering gearbox case failure.

The larger size of the BIG BORE XD2 Steering Gearbox may prohibit the use of some aftermarket track bars.

Don't see what you need or need help making a decision on which product is right for your project?
Contact Us


ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
ACTUAL KIT CONTENTS MAY VARY DUE TO PRODUCT DESIGN CHANGES AND/OR ENHANCEMENTS.

APPLICATION:

2012-18 Jeep JK 3.6L with Unmodified OEM Axle (for modified axle use SK688R36JP1-6.75W)

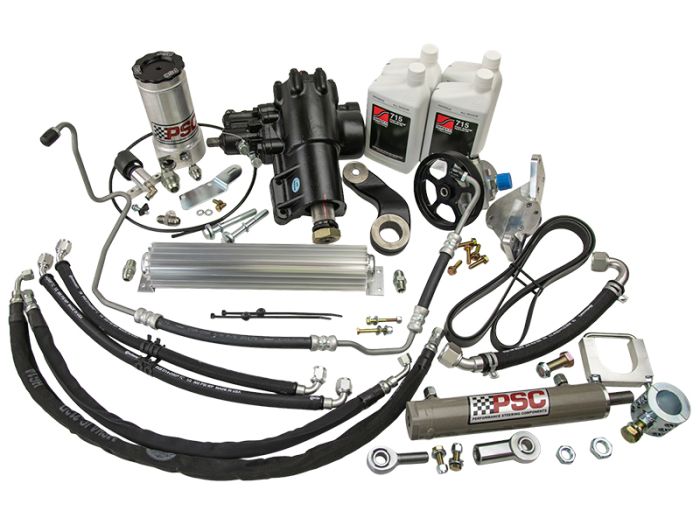

KIT INCLUDES:

SG688R Big Bore XD Steering Gear

Complete Pump Kit: Includes Fluid Reservoir, Fluid Cooler, Fluid Anti-Splash Valve, Serpentine Drive Belt, Brackets, Hoses, & Fittings, and 4 QTS SWEPCO 715 Power Steering Fluid
*NOTE* Not compatible on vehicles equipped with a supercharger.

No-Weld, Bolt-On Assist Cylinder Kit, includes 1.75 X 6.75 Assist Cylinder, No-Weld, Bolt-On Assist Cylinder Mounting Bracket, Assist Cylinder Installation Hose Kit, Rod Ends and Tie Rod Clamp

WARNING!

Use HWK-688-PP hardware kit when installing a Synergy MFG Track Bar and Sector Shaft Brace with this product.

Using the Factory or the standard PSC supplied bolts with the Synergy MFG Track Bar and Sector Shaft Brace could result in steering gear case failure.

NOTES:

The larger size of the BIG BORE XD Steering Gear may prohibit the use of some aftermarket track bars.

To achieve the best on-the-road driveability, recommended front axle caster setting is 7 degrees POSITIVE.

A high steer or drag link flip kit may need to be installed on vehicles with more than four (4) inches of lift.
There are no drop Pitman arms on the market that fit the Big Bore XD Steering Gear.

PSC recommends using SWEPCO 715 Power Steering Fluid in all Cylinder Assist Kits.
