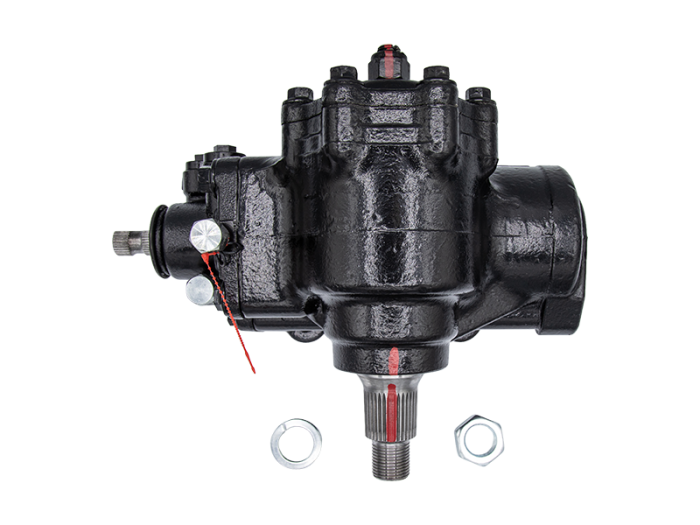

SG851R - BIG BORE XD® Cylinder Assist® Steering Gear for 1994-2002 Dodge Ram 2500/3500 4X4

Expected time to ship, 2-3 business days
Quick Overview

This PSC Motorsports Big Bore Steering Box with Cylinder Assist Ports for the 1994 - 2002 Dodge Ram 2500/3500 is a NEW replacement unit for the problem prone original Dodge steering.

The PSC Motorsports Dodge XD steering gear box was designed around the 2010 and newer Dodge XD platform and modified for a direct bolt-in installation using the OEM pressure and return lines and OEM 36 spline pitman arm.

The failure prone lower bearing size has been increased from 35mm to 45mm to prevent excessive side-to-side deflection of the sector shaft, the main cause of "Dodge steering "wander".


PSC is not aware of any aftermarket steering gearbox braces, including the SB300K, that are compatible with the SG853/R products.

Don't see what you need or need help making a decision on which product is right for your project?
Contact Us

1994-2002 Dodge RAM 2500/3500 Trucks

-6AN Male Cylinder Assist™ Ports for connection to a PSC Steering Assist Cylinder
45mm Diameter Sector Shaft and Larger Support Bearing
16:1 Steering Ratio – 3.25 Turns Lock-To-Lock
Compatible with Factory and Aftermarket Pitman Arms
Compatible with OEM High-Pressure and Return Line Hose Assemblies
Eiminates the need for aftermarket steering braces

This product is not compatible with aftermarket steering gear brace solutions

Due to the increased overall size of the PSC XD steering gear, installation hardware (HWK-851) is included with the SG851 to space the component off the frame.
